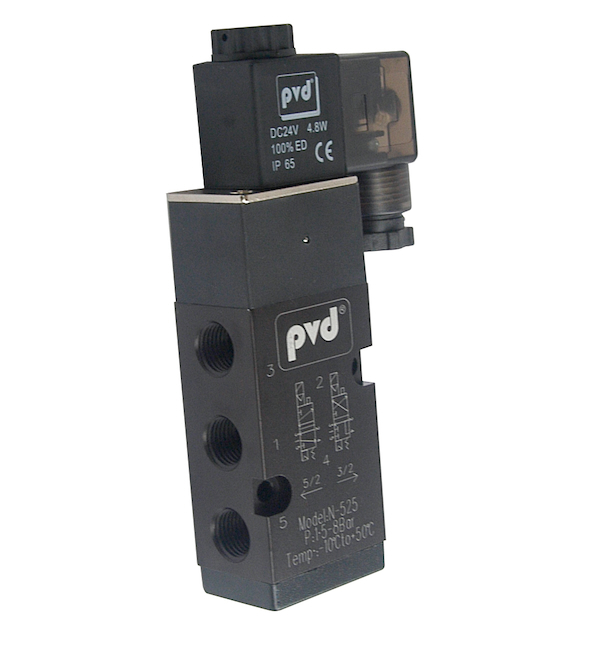

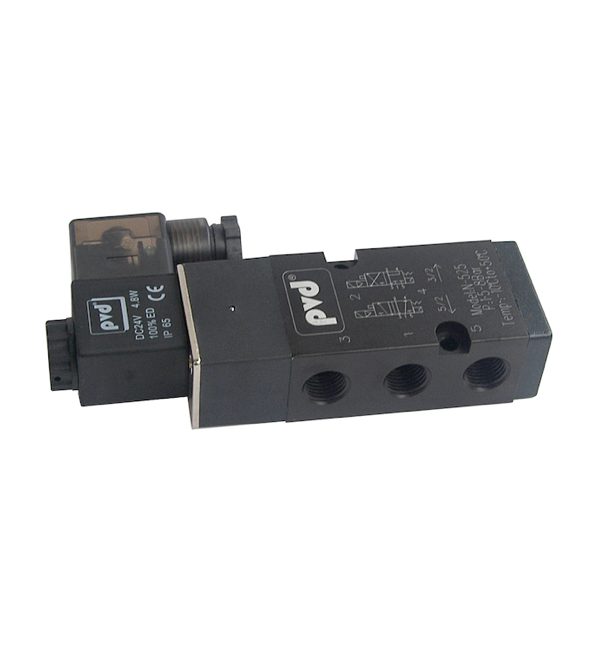

NAMUR Valve

It is used to control a pneumatic actuator by directing compressed air from the compressor.
Compliant with the NAMUR (VDI/VDE 3845) connection standard, it is mounted directly onto the actuator.
With 5/2-way (N-525) or 3/2-way (N-323) model options, it is suitable for double-acting or single-acting actuators.
It is offered with 12-24-110-220 V AC or V DC coil voltage options.
An optional Ex-Proof (explosion-proof) version is available.

Valve Type

5/2-Way (N-525) or 3/2-Way (N-323)

Connection Standard

NAMUR (VDI/VDE 3845)

Coil Voltage

12-24-110-220 V AC / V DC

Operating Pressure

2-10 Bar

Operating Temperature

-10°C ~ +50°C

Ex-Proof

Optional
