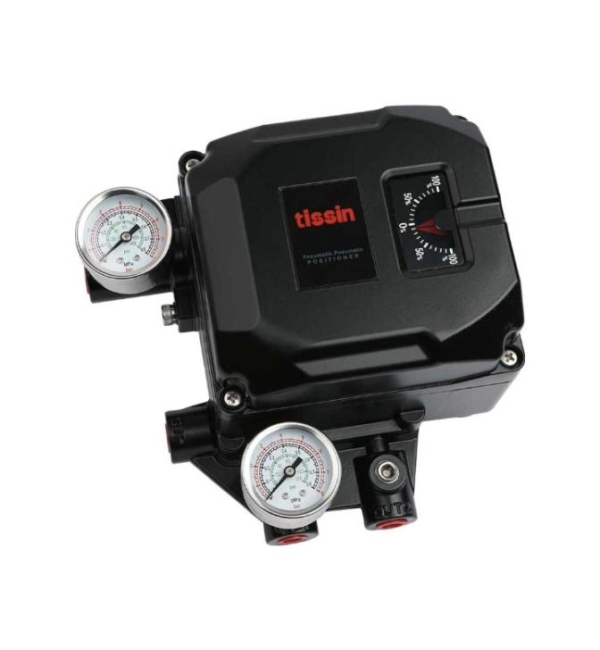

Pneumatic-Pneumatic Positioners

Pneumatic-Pneumatic Positioners control valve stroke in response to a 0.02~0.1 MPa input signal pressure from the controller
Fast response time and excellent stability
Linear and Rotary type
Low air consumption
Built-in by-pass switch (auto / manual)
Optional Positioner Transmitter and Limit Switch accessory

Input Signal

0.02 – 0.1 MPa

Supply Pressure

0.14-0.7 MPa

Stroke

10-150mm (Linear), 0-90° (Rotary)

Air Connection

PT 1/4, NPT 1/4, G 1/4

Protection Class

IP66
