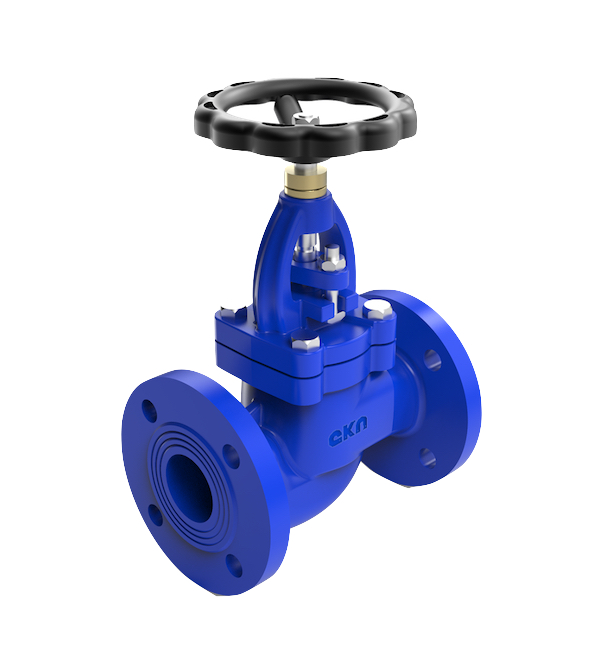

Globe Valve
Product Features
- Straight or angle body types, with bolted or screwed bonnet options
- Cast iron, cast steel, or bronze body material; lightweight bronze type options suited to the shipbuilding sector
- Model alternatives providing enhanced sealing with a bellow-sealed type
- Operating pressure from PN4 to PN40, with an operating temperature range of -10°C to +300°C
- Precise flow control with standard, balanced, or regulating disc options
Technical Specifications
Brands
W&O, Ayvaz
Model Variants
Straight, Angle, Bellow Sealed type options
Body Material
Cast iron, cast steel, or bronze options
Bonnet Type
Bolted or Screwed Bonnet
Maximum Operating Pressure
PN4 – PN40 range (varies by model)
Operating Temperature
-10°C to +300°C (varies by model)
Face-to-Face Distance
DIN length or special (short) type options, suited to the shipbuilding sector
Connection Type
Flanged, compliant with DIN standards
Disc Options
Standard, balanced, or regulating disc
